VHF
VHF Digial Active DAS
Model: 03321D
Product Details
RF Direct Sampling: The signal is digitized without down-conversion, preserving signal integrity and enabling wideband digital processing.
Cavity Filter: Superior out‑of‑band rejection, minimizing interference and ensuring clean, stable signal amplification.
NMS facilitates remote/local control and monitoring.
SNMP Support: Higher cyber security and convenient data collection.
Stable and improved signal transmission quality.

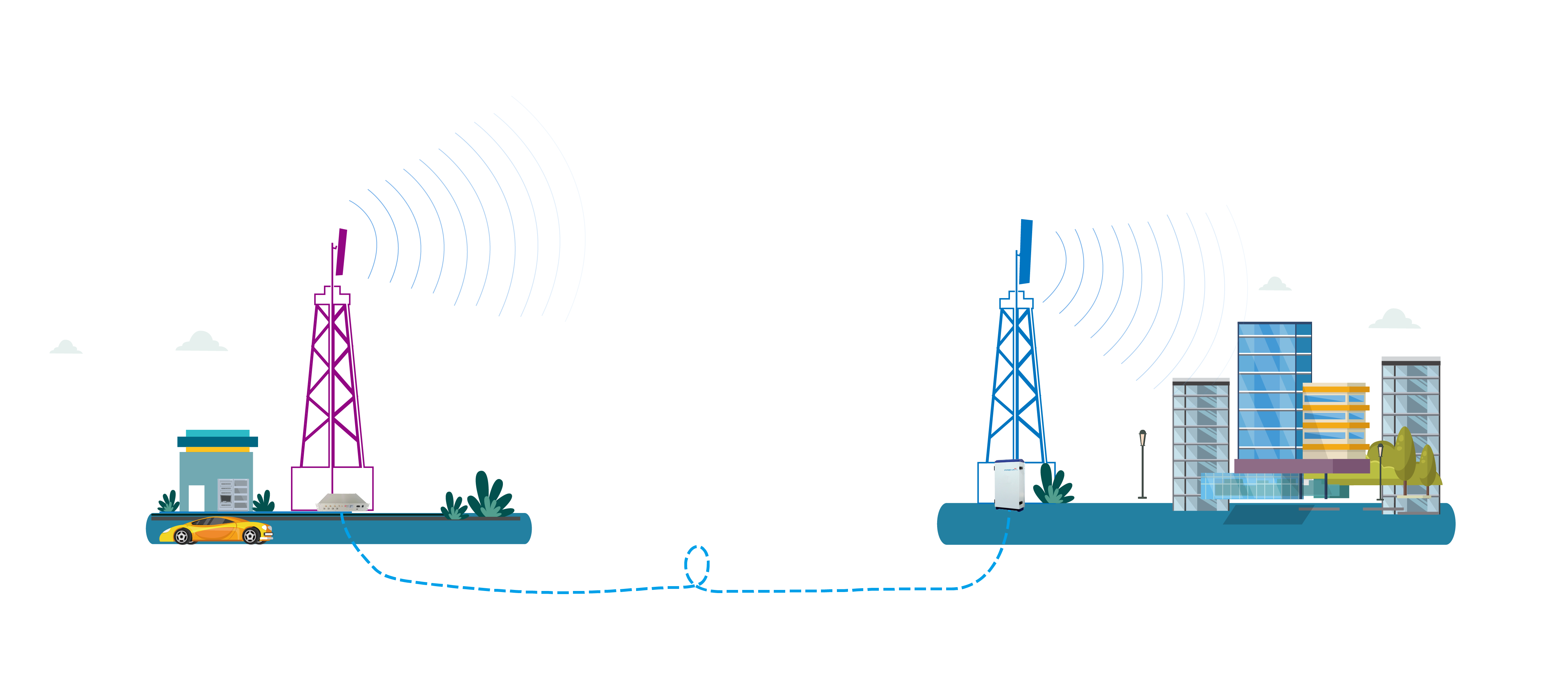

1 MU (Master Unit) can support up to 32 RU (Remote Unit) to maximize utilization of fiber optic cable
Specification
P/N: 03321D.162Z | MU (03321D.162ZM) | RU (03321D.162ZR) | |
Frequency Range | Uplink | 165.353125-167.253125 MHz | |
Downlink | 169.953125-171.853125 MHz | ||
Number of Channels | 9 | ||
Channel Bandwidth | 6.25 kHz/12.5kHz/25kHz | ||
Number of Units | 1 | ≤ 32 | |
Max. Gain | 45±3 dB | ||
Manual Gain Control | 31 dB in step of 1 dB | ||
Automatic Gain Control | ≥20 dB | ||
Gain Flatness | ≤ ±3 dB (peak-to-peak) | ||
Max. Input Power Without Damage | Uplink | -10 dBm | |
Downlink | 10 dBm | ||
Output Power | Uplink | -10 ±2dBm | |
Downlink | 33 ±2dBm | ||
Noise Figure | UL: ≤ 6 dB | ||
EVM | ≤8% | ≤8% | |
VSWR | ≤ 1.6 | ||
System Delay | ≤ 50 μs | ||
RF Connector | N-Female | ||
Impedance | 50Ω | ||
Optical Output Power | ≥0 dBm | ||
Optical Wavelength | 1270 nm/1330 nm (WDM) | ||
Fiber | Single Mode | ||
Fiber Connector | 8*LC/PC | 2*LC/PC | |
Power Supply | DC -48 V | AC100-240V | |
Power Consumption | ≤45 W | ≤ 80 W | |
Dimensions | 422*352*88 mm | 408*630*222 mm | |
Weight | ≤10 kg | ≤ 25 kg | |
IP Rating | IP40 | IP65 | |
Operating Temperature | -10~50 ℃ | -25~55 ℃ | |
NMS | Local | Via RJ45 | |
Remote | Via Cloud-based NMS (optional)/SNMP v2 (optional) | ||
