Digital Repeater

Penta Band-adjustable Digital Pico Repeater (B7/1/3/8/20)

Model: 42015D

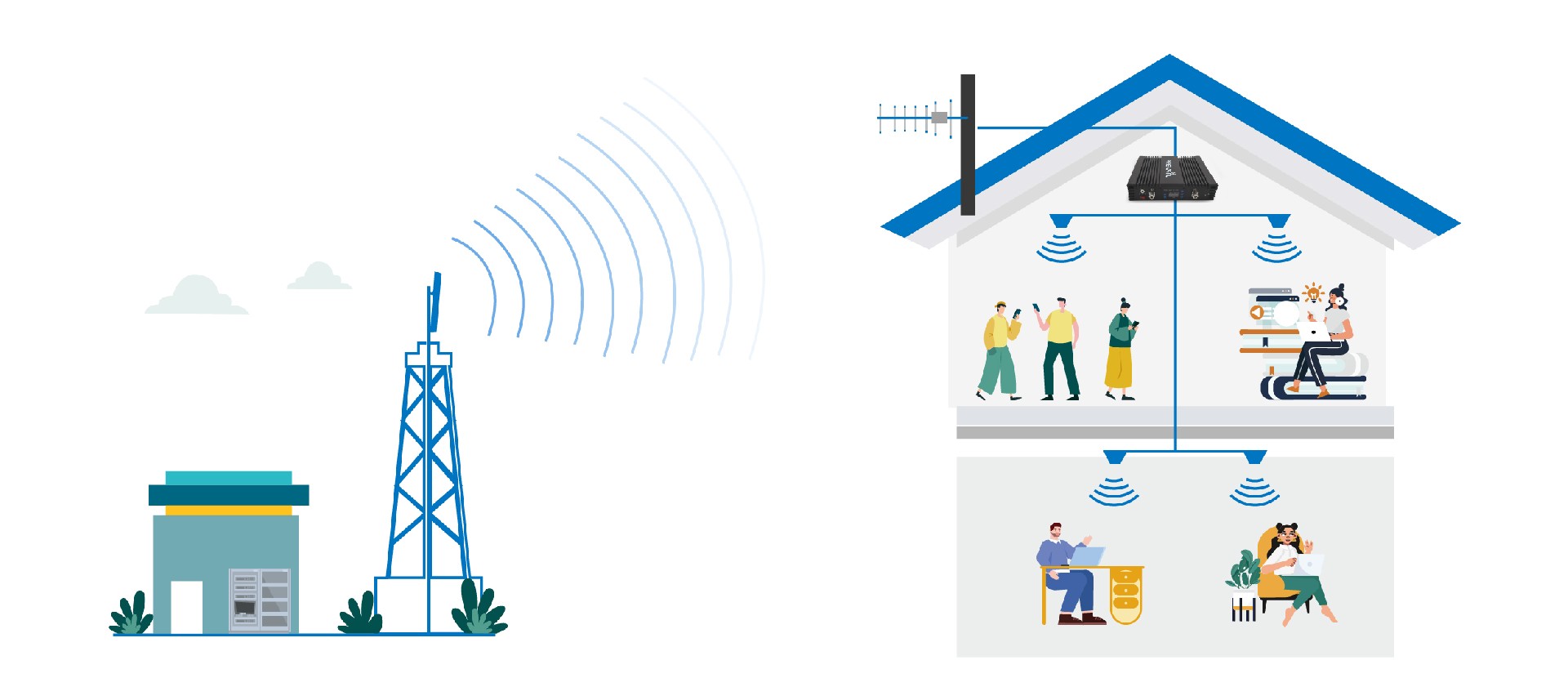

Product Details

Multi-band support offers flexibility to meet various network demands.
Fine-grained control is achieved through individual sub-band activation/deactivation.
Intelligent algorithms effectively mitigate uplink interference.
Independent gain control further optimizes performance.
Self-control mechanisms minimize interference during new base station deployments.
NMS facilitates remote/local control and monitoring.

Specification

P/N: 42015D.713820		B20 (800)	B8 (900)	B3 (1800)	B1 (2100)	B7 (2600)
Frequency Range	Uplink (MHz, adjustable)	832-862	880-915	1710-1785	1920-1980	2500-2570
	Downlink (MHz, adjustable)	791-821	925-960	1805-1880	2110-2170	2620-2690
Number of Sub-bands		1	1	1	1	1
Bandwidth per Sub-band (MHz, adjustable)		0.2-30	0.2-35	5-75	5-60	5-70
Max. Gain	Uplink	75±3 dB	75±3 dB	75±3 dB	75±3 dB	75±3 dB
	Downlink	80±3 dB	80±3 dB	80±3 dB	80±3 dB	80±3 dB
Manual Gain Control		31 dB in step of 1 dB
Automatic Gain Control		≧ 20 dB
Gain Flatness (per sub-band)		≦ ±3.5 dB (peak-to-peak)
Max. Input Power Without Damage		0 dBm
Output Power	Uplink	20±2 dBm	20±2 dBm	20±2 dBm	20±2 dBm	20±2 dBm
	Downlink	20±2 dBm	20±2 dBm	20±2 dBm	20±2 dBm	20±2 dBm
Out of Band Gain	2.5≤f_offset_CW< 5.0 MHz	≤60 dB
	5.0≤f_offset_CW<10.0 MHz	≤45 dB
	10.0 MHz≤f_offset_CW	≤35 dB
Spurious Emission	9KHz-1GHz	≦ -36dBm
	1GHz-12.75GHz	≦ -30dBm
ACRR	±10/20MHz	≦-36dBc/30KHz
	±20/40MHz	≦-40dBc/30KHz
EVM		≦ 6%	≦ 6%	≦ 8%	≦ 6%	≦ 6%
Frequency Stability		≦ ±0.01 ppm
Noise Figure		≦ 8 dB
VSWR		≦ 2
System Delay		≦ 6 µs
RF Connector		N-Female
Impedance		50 Ω
Power Supply		Input: AC 100~240 V, 50/ 60 Hz; Output: DC 24 V/ 4.2 A
Power Consumption		≦ 110 W
Dimensions		33025895 mm
Weight		≦ 11 kgs
IP Rating		IP30
Operating Temperature		-10 °C to 50 °C
NMS	Local	Via USB Type-C
	Remote	Via Cloud-based NMS (optional)
