Ultra Wideband SDR PCBA Board
Model: 988400.208000
Product Details
This SDR platform is a versatile tool for various sectors, including:
Telecommunications: 3G, 4G, and 5G public networks, including TDD and FDD mobile communication.
Security & Surveillance: Signal monitoring, radar and radio detection, anti-UAV systems, and anti-terrorism/anti-explosion systems.
Defense & Private Networks: Specialized radio and communication systems.
Specification

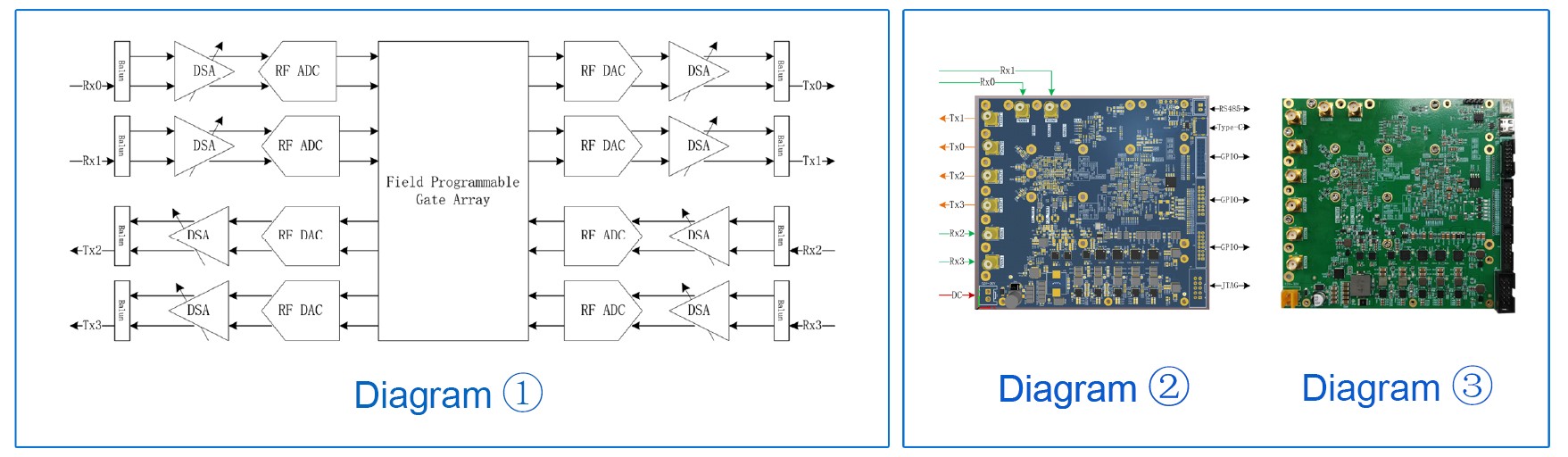

This SDR platform is built around a powerful FPGA and a direct RF acquisition transceiver, offering exceptional performance for a wide range of applications.
Advanced Hardware: The system uses a resource-rich FPGA with 300K logic resources and 848 18x18 multipliers, ensuring high-speed data processing.
Direct RF Sampling: The 8T8R transceiver features 14-bit ADCs and DACs for direct RF sampling, simplifying the signal chain and improving performance.
Extensive Bandwidth: It operates across a broad frequency range of 20 MHz to 8000 MHz. The platform currently supports a sampling bandwidth of 400 MHz per channel, with a design capability of up to 800 MHz per channel for future-proofing.
Precise Control: With 32-bit high-precision frequency control, the platform can be seamlessly connected to a computer for advanced algorithm integration.
Signal Integrity: Each RF channel includes a built-in Digital Step Attenuator (DSA) with a 0 to 31 dB range, allowing for precise signal level control. The design ensures a clean signal without LO leakage or I/Q imbalance.
