Termination Load

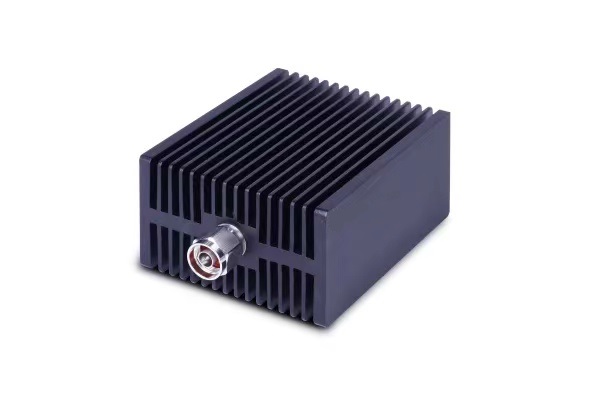

Termination Load 200W: 5G Version
Model: 553.06403
Product Details
5G version
Wide frequency range
Low VSWR
Low PIM
High reliability
Specification
Electrical | |
Frequency Range | 698-4000 MHz |
VSWR | ≤1.22 |
PIM, 3rd Order | ≤ -160 dBc (2 x 43 dBm carrier) |
Average Power, Maximum | 200 W |
Impedance | 50Ω |
Mechanical | |
Operating Temperature | -55°C to +65°C |
Storage Temperature | -40°C to +85°C |
Relative Humidity | 5% - 95% |
Classification of Waterproof | IP67 |
Dimensions (H x W x D) | 200x198x82mm |
Net Weight (with installation kit) | ≤2.0 kg |
Connector | 4.3-10 Female |
